G series 1440w Flood light

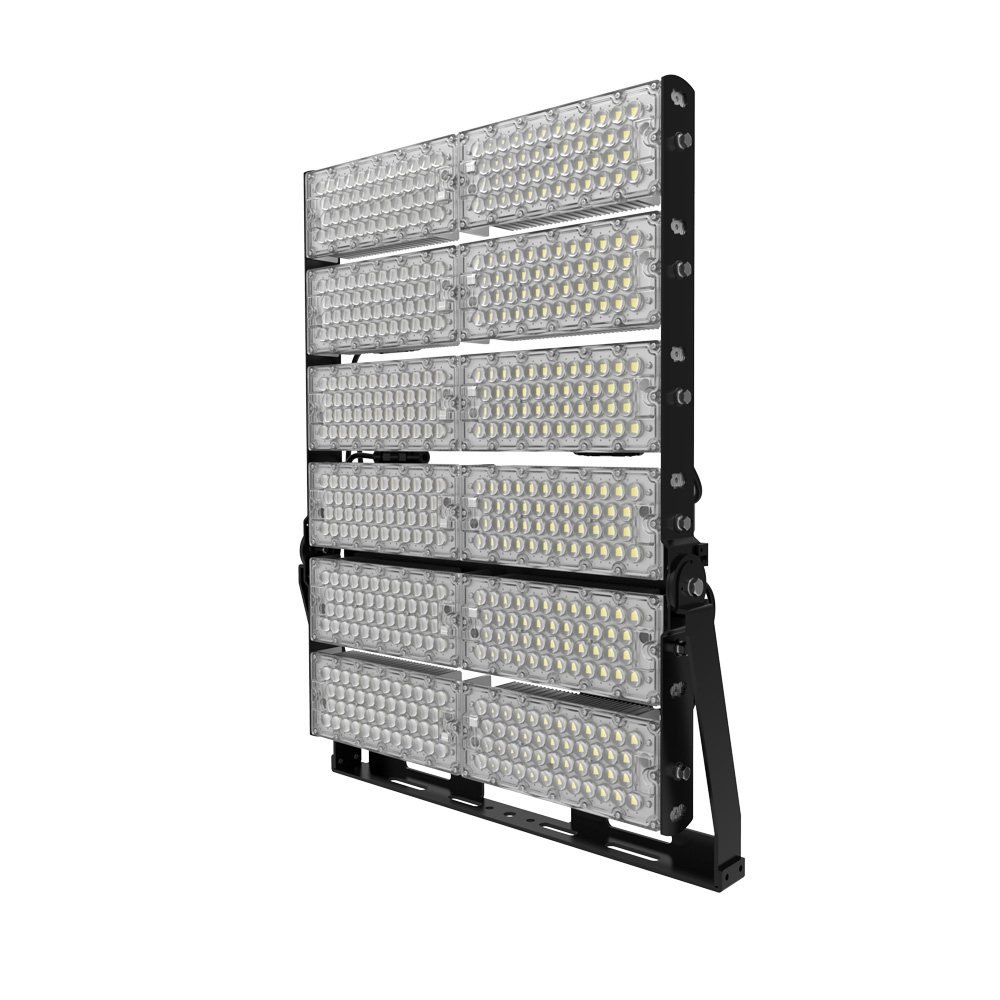

240 Watt Integrated 240watt 5700k 360w 720w 960w 1200w 1440w Ip65 1000w Mini Outdoor Led Floodlight Module Flood Light
Subject

Your Email *

Your phone or whatsapp *

Message *

Please leave message,we will answer you in first time.

Keep
  • Quick Details

    Light Source:LED
    Item Type:Flood Lights
    LED Light Source:SMD5050
    Input Voltage(V):85~305V AC
    CRI (Ra>):80
    Beam Angle(°):20/40/60/90/120/100*140
    Working Lifetime(Hour):50000
    Lamp Body Material:Aluminum
    IP Rating:IP65
    Certification:CE, C-tick, EMC, ETL, FCC, GS, LVD, RoHS, SAA
    Place of Origin:Guangdong, China (Mainland)
    Brand Name:MIC
    Application:Sports Stadiums, stadium,warehouse,airport logistics harbour boat building
    Color Temperature(CCT):warm white(2700-3500k) Pure white(4000-4500k) Cool white(6000-6500k)
    Lamp Luminous Flux(lm):19200~230400
    Lamp Luminous Efficiency(lm/w):160
    Working Temperature(℃):-40 - 50
    Product Name:Outdoor Led Floodlight Module Flood Light
    Driver:ETL CE TUV Driver
    Power factor:PF>0.9
    Warranty:5Years

    Packaging & Delivery

    Selling Units:Single item
    Single package size: 91X69X18 cm
    Single gross weight:33.0 kg
    Package Type:1pcs/CTN
    Lead Time :
    Quantity(Piece) 1 - 50 51 - 1000 >1000
    Est. Time(day) 7 12 To be negotiated
    Product Description

    Streamline design appearance,sure thin/easy stallation, less weight to save your shipping cost,extremly high brightness, final finished product's luminous can reach 160lm/w.

    Specification
    Model NO.
    MFL-G120
    MFL-G240
    MFL-G360
    Product name
    120W Flood light
    240W Flood light
    360W Flood light
    NW/Size
    2.8kg/310*116*132mm
    5.6kg/362*343*132mm
    7.25kg/362*475*132mm
    Luminous Flux
    >19200LM
    >38400LM
    >57600LM
    Packing
    370*270*180mm
    410*380*180mm
    520*410*180mm




    Model NO.
    MFL-G480
    MFL-G720
    MFL-G960
    Product name
    480W Flood light
    720W Flood light
    960W Flood light
    NW/Size
    11kg/362*597*132mm
    16.8kg/362*861*132mm
    18kg/649*597*132mm
    Luminous Flux
    >76800LM
    >115200LM
    >153600LM
    Packing
    640*410*180mm
    780*410*180mm
    700*650*180mm




    Model NO.
    MFL-G1200
    MFL-G1440
    Product name
    1200W Flood light
    1440W Flood light
    NW/Size
    27.2kg/649*729*132mm
    33.6kg/649*861*132mm
    Luminous Flux
    >192000LM
    >230400LM
    Packing
    780*700*180mm
    910*690*180
    Beam Angle
    20/40/60/90/120/100*140°
    IP Grade
    IP65
    CCT
    2700-6500K
    PF Rate
    >0.95
    luminous efficiency
    >160lm/w
    CRI
    >80
    Life span
    50000h
    Input voltage
    AC85-305V
    lmDetailed Images




    lens optional

    Symmetrical PC lens:20/40/60/60/90˚

    Asymmetrical PC lens:100*140˚

    1060 Aluminum

    Commercially pure aluminum, high aluminum content and

    purity, high corrosion resistance and high thermal conductivity.

    Outstanding performance, with excellent thermal conduction

    effect that general aluminum alloy can not be.

    Beam angle

    Module's beam angle can be adjustable.

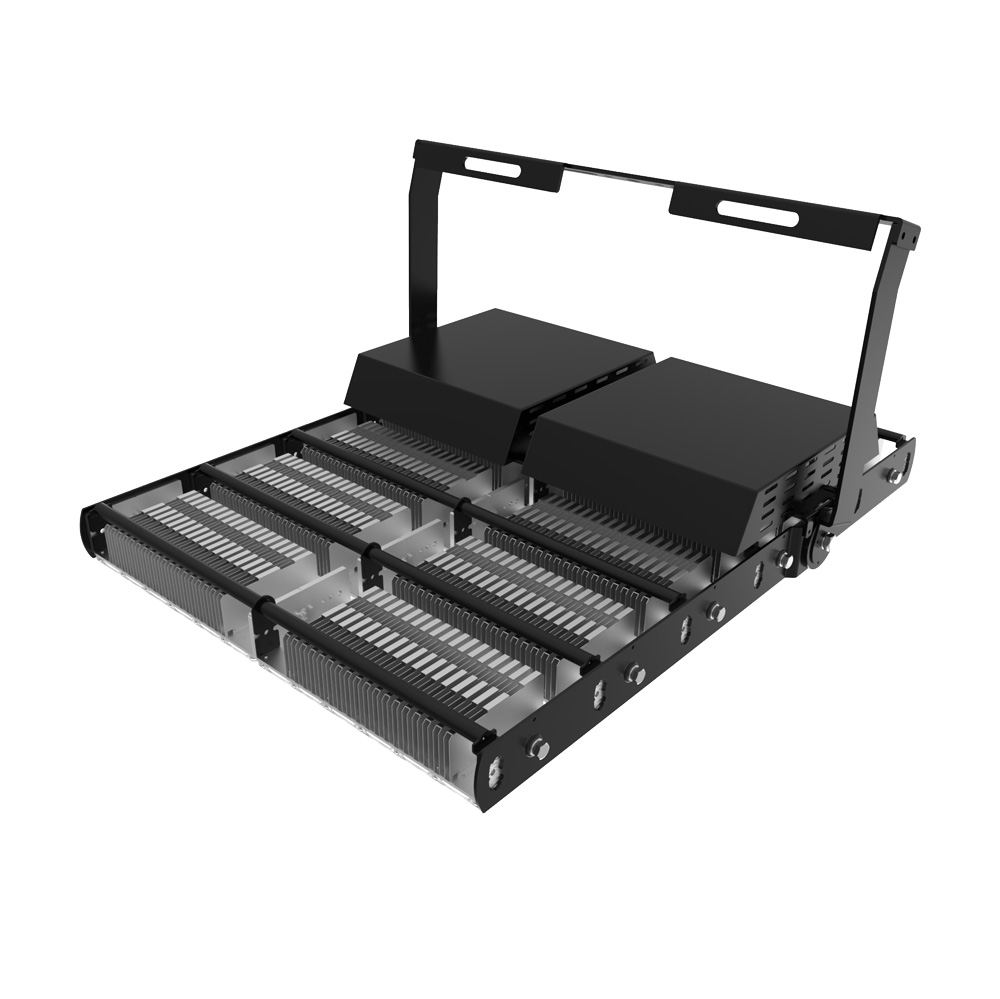

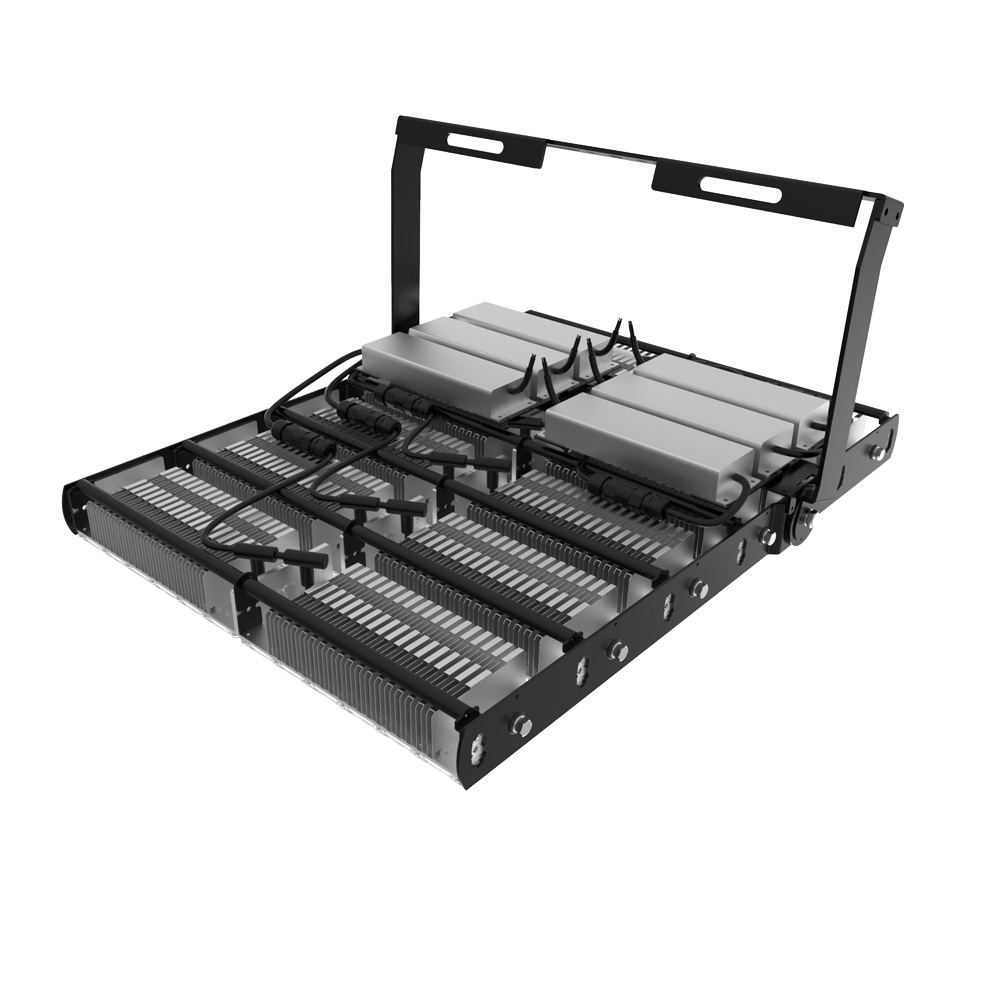

    Driver Box

    Intelligent temperature control branded driver used with 5

    years long time warranty, aluminum drive house with IP67

    waterproof, and it can fast conduct the heat from the

    driver to be out



    Certifications

    MIC Led corn light certifcated with ETL,FCC,CE,ROHS,TUV, Popular used for replace warehouse high bay and street bulb, using in petrol station, garden, super market, shop etc.
